NOT Gate
1. Nand Gate (Given)

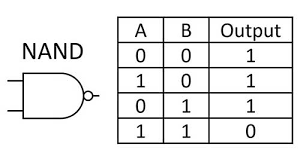

The starting point of Hack computer architecture is Nand Gate, from which all other gates and chips are built. Nand Gate is considered as primitive gate in nand2tetris course. You don’t have to worry about its implementation for now.
2. Not Gate

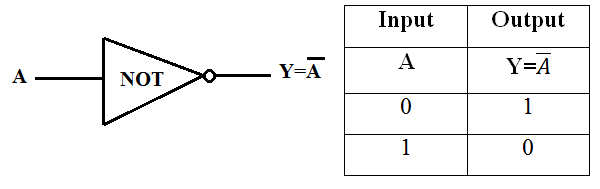

The single-input Not Gate, also referred as Inverter, inverts the value of input.
3. Implementation (Logisim)
Representation of the Not gate in the logisim software using the Nand gate only.
4. Implementation (HDL)
Representation of the Not gate in HDL using the Nand gate only.
CHIP Not {
IN in;
OUT out;
PARTS:
Nand(a=in, b=in, out=out);
}
